1. General Description

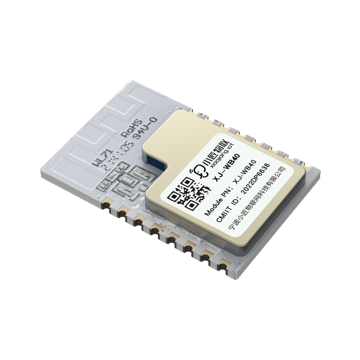

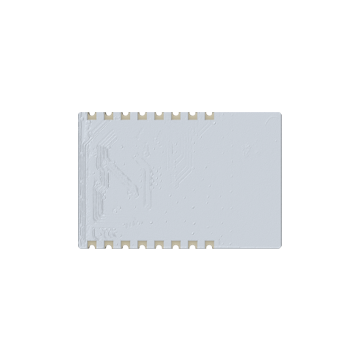

This document is to specify the product requirements for 802.11b/g/n and BLE5.0 1T1R IOT Module. It is based on TG7100C low-power chipset that complied with IEEE 802.11n,and it is also backward complied with IEEE 802.11b/g standard from 2.4~2.5GHz. It can be used to provide up to 54Mbps for IEEE 802.11g, Supports all data rates of 802.11n including MCS0 to MCS7.

The TG7100C is a Wi-Fi + BLE chipset for low power and high performance application development.The wireless subsystem includes a 2.4g radio, Wi-Fi 802.11b/ g/n and BLE 5.0 baseband /MAC design.The microcontroller subsystem contains a low-power 32-bit RISC CPU, cache, and memory.The power management unit controls the low power mode.In addition, various security features are supported.Peripheral interfaces include SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO.

2. Features

 Support IEEE 802.11b/g/n+BLE5.0
 Supports all data rates of 802.11g including 6, 9, 12, 18, 24, 36, 48 and 54Mbps
 Supports short GI and all data rates of 802.11n including MCS0 to MCS7
 Supports multi-cloud connectivity.
 Support STA，Soft AP and Sniffer mode
 Support for encryption protocols: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3  Support WiFi and BT co-existence
 Rich peripherals such as SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO

 RoHS compliant
